SPECIFICATIONS

Battery Type: 3.7V/1800mAh Lithium Battery

Certification: CE

Length Measurement Range: 10-2000m

Model Number: NF-8601S

Package: Yes

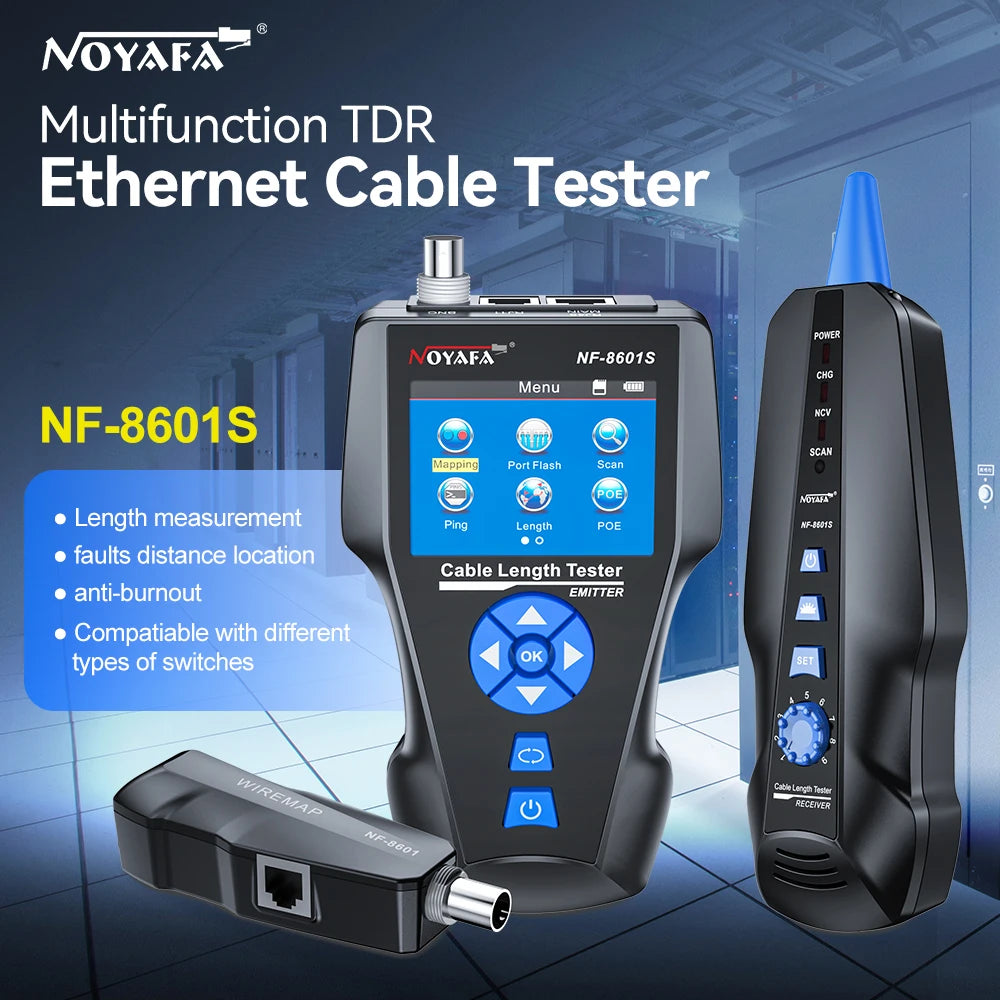

Product Name: Cable Tester

Tracing Cable Type: STP/UTP Cat5e, Cat6, Cat6a, Cat7 network cable, Telephone Cable, Coaxial Cable, and Common Metal Wires connected with alligator clip

Type: Multifunction Network Tester

Special Product Function:

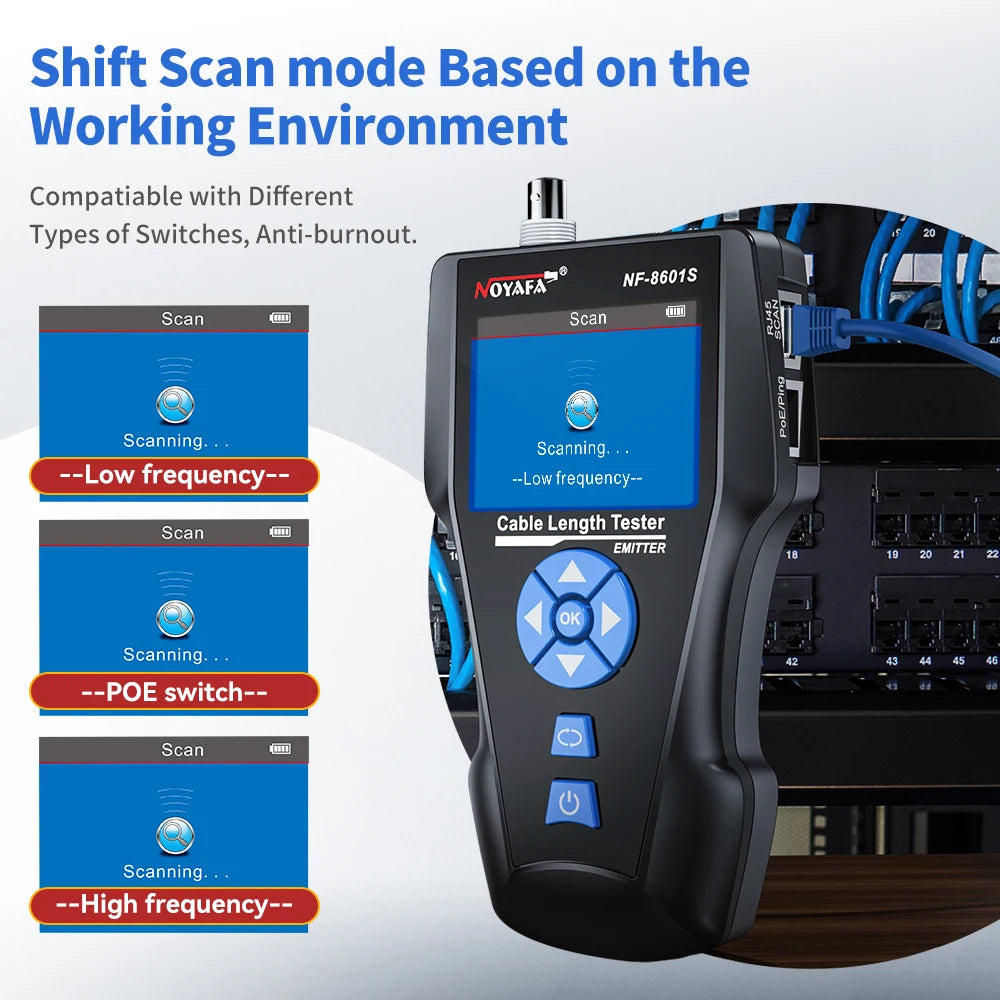

1. Three Scan Modes: Normal Mode, POE Mode, High Power Mode(High Power mode can detect cables inside walls, with a detection depth of about 5 cm).

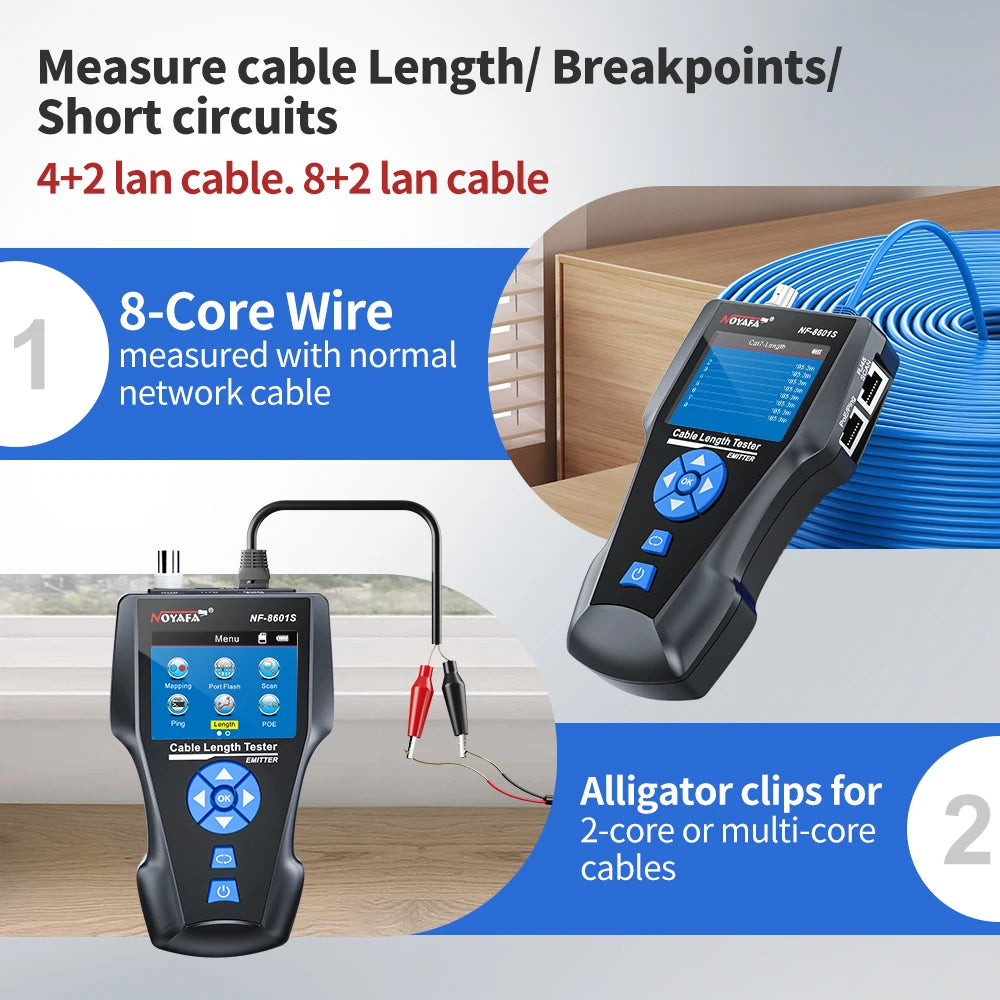

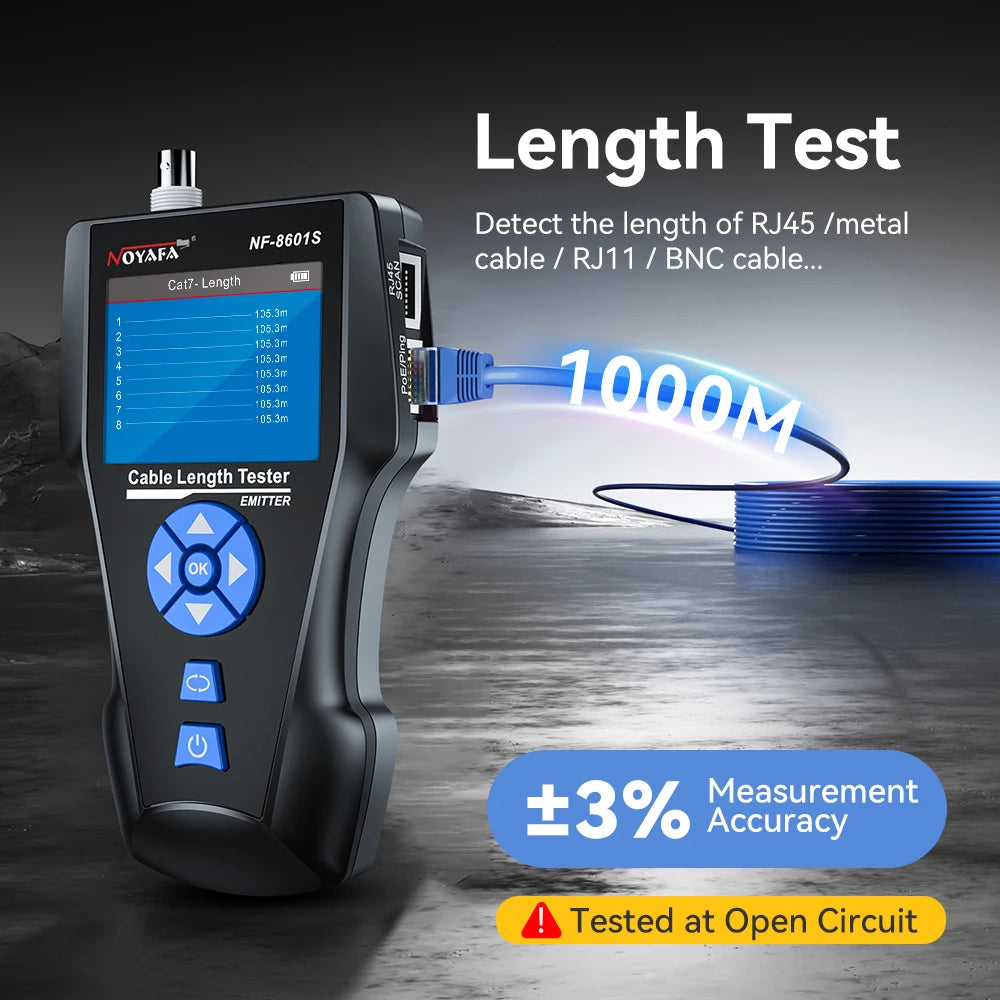

2. Measuring the length of network cables, coaxial cables, and telephone lines, the cable length can be measured up to 2000 meters, and the accuracy of measuring cable length and disconnection location is 98%.

3. Can find the specific location of the single-core breakpoint and the short-circuit point of the two-core cable.

4. PING Function: To test network performance, data packet, min &max time.

5. TF storage and export function: 160 sets of data storage and export. There are storage, memory and recall functions, which are convenient for users to use and calibrate.

Main Product Feature:

1. No noise, Anti-interference.

2. Test the short circuit, open circuit, crossover, reverse connection, paired connection and cable disconnection location of the network cable, telephone line, BNC cable, and displayed intuitively on the screen.

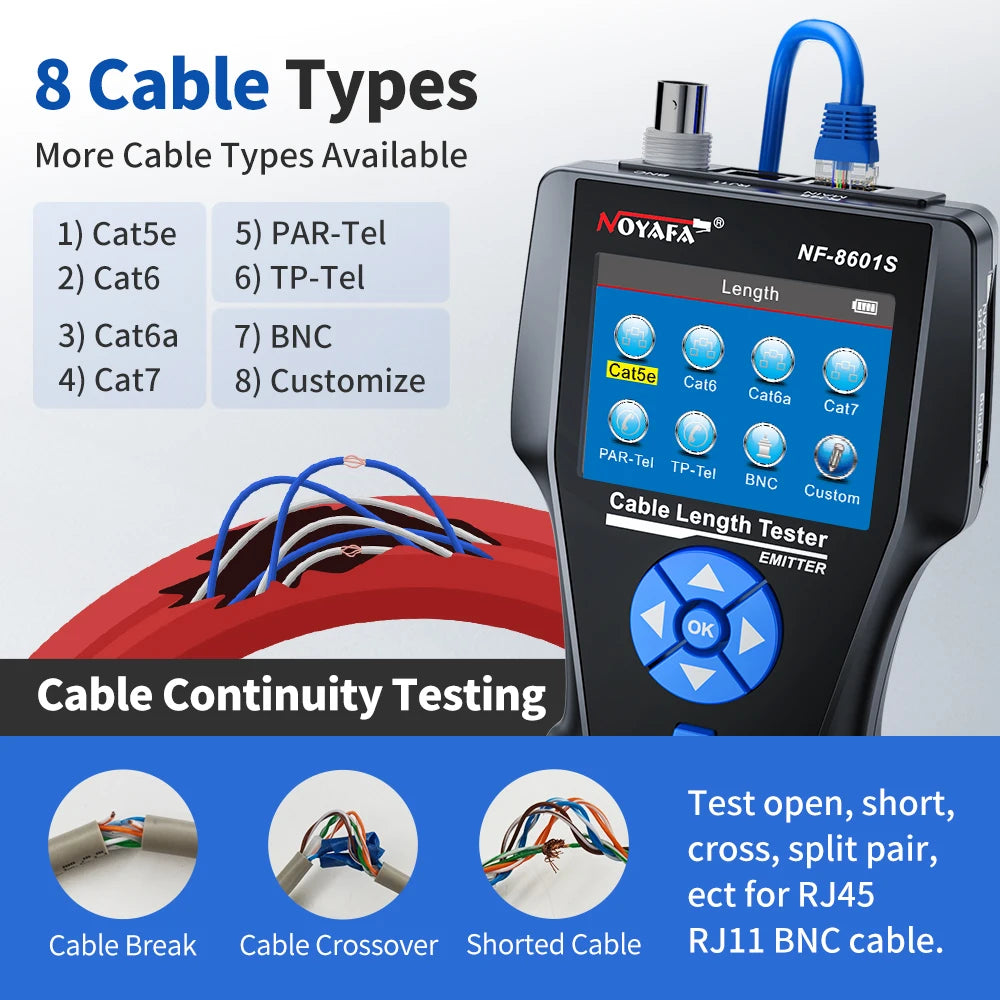

3. Testing open, short, cross, and split pair for RJ11 RJ45 BNC cable.

4. Conduct a crosstalk test on the network cable to check potential faults such as slow network speed.

5. Can find the target wire you need among the many network cables, telephone cables, coaxial cables and other various metal cables.

6. Can find the line when the switch and router are powered on.

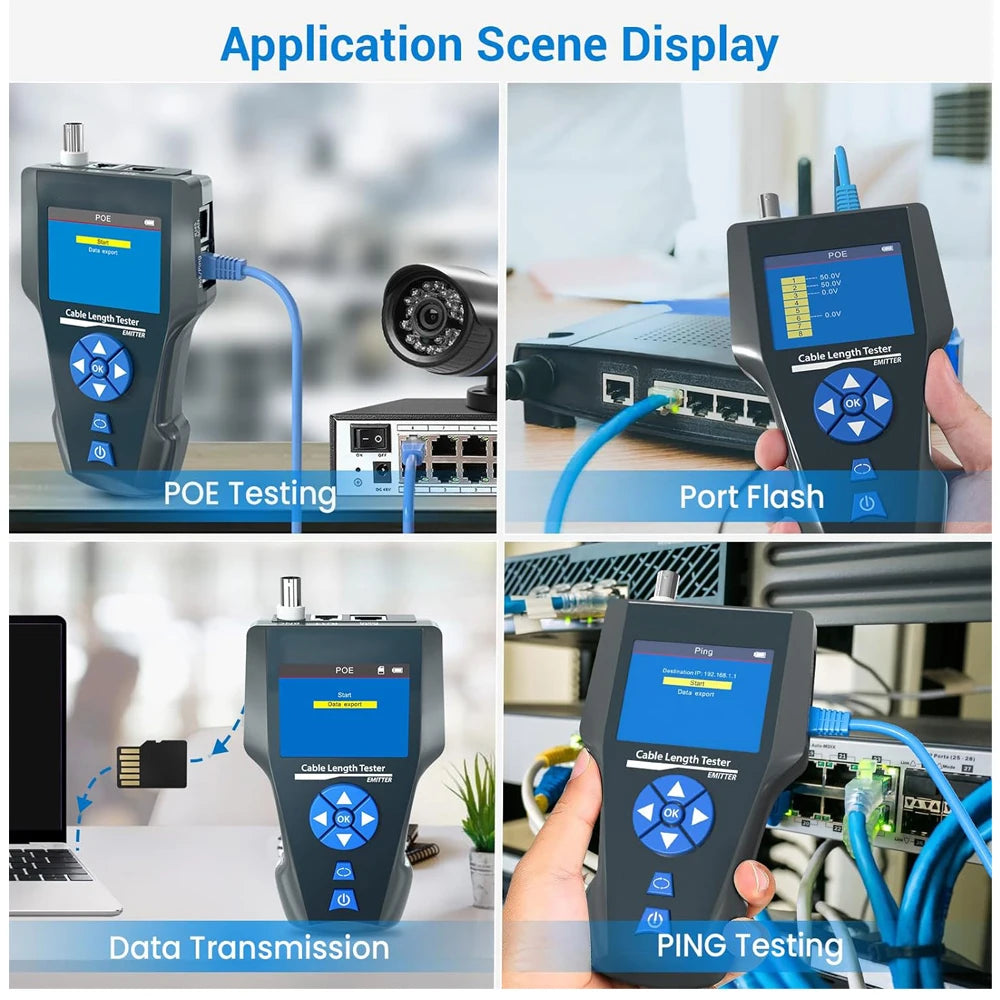

7. Port Flashing Function: When the switch and router are turned on, the function of port flashing can be used to quickly find the target network cable.

8. POE Function: To identify which pins are providing power and also detect how much voltage.

9. The sound prompt function of the remote adapter when measuring the line sequence.

10. Banknote detection and lighting function, easy to work in dark environment.

Please Note:

1. NF-8601S: The RJ45 SCAN port cannot be tested with power on, especially it cannot be connected to a POE switch for testing, the instrument will burn out.
